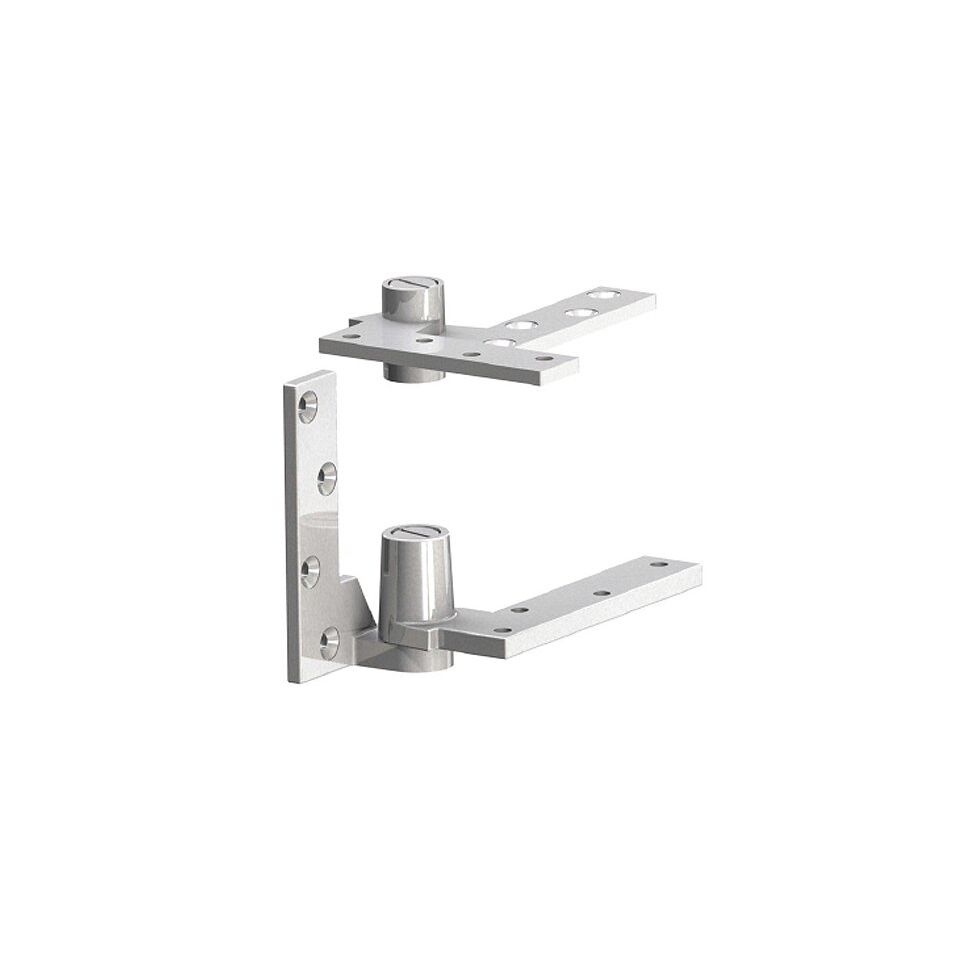

K195 Series is an offset pivot with excellent corrosion resistance and abrasion resistance with a beautiful appearance made of stainless steel and can be used up to 200kg.
Product Features
ㆍ Selectable options for left and right based on the pushing directio
ㆍ 19mm offset (distance from door surface to pivot axis)
ㆍ Door opening angle: 180˚ ㆍVertical height adjustable (Max: 5mm)
ㆍ Door size: Max. 121mm (width) x 2300mm (height)
ㆍ Including Wood & Machine screw
ㆍ Use of needle bearing with excellent durability
ㆍ ANSI GRADE 1 certification
Specification | K195 |
Door size | ≤ 1,219 mm /≤2,300mm) (Over K19 Extra Installation) |
Max. Door Weight | 200 KG (Over K19 Extra Installation) |
Max. opening angle | 180˚ |
Material | Stainless Steel (STS304) |
Certificate | ANSI Grade 1 |
제품의 구성
설치도
